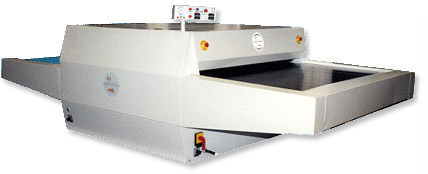

ASTEX MODEL 5363SC
Continuous Fusing Machine
|
|
Astex 5363SC with process
control system
|
Ideal for men's & ladies sportswear apparel.
The Astex 5363SC is lower cost
alternative to the Astex High
Production Continuous Fusing Press 6800SC Series
|
With a 63" belt, the Astex
5363SC is an upgraded version of the
Astex 5200SC Series. The system is capable of roll-to-roll
fusing and has 4-zone heat control and 62" long
heat chamber. The advanced heating system assures a
soft flexible fused assembly, maintaining fabric structure
and avoiding shrinkage or fading, while it provides
absolute control of the adhesive resins on any type
of interlining selected.
The combination of top, bottom, left and right conductive
heat application with precise speed and pressure control,
assures quality results on all fused assemblies.
The 5363SC fusing press exceeds worldwide standards in safety
and efficiency. It was engineered with safety and operator
comfort in mind.
|
|
FUSING MACHINE INFO
|
Features:
- Two Sets of Pneumatic Pressure Rollers
- 4-zone heat control
- Easy Change Belt System
- Front loading conveyor
- Automatic Cool Down Mode
- Alerting capability for low pressure or belt off
track.
- Exit Cooling Conveyor
- Anti Pleating Rollers
- Variable Speed Control
|
- Pneumatic Pressure System Controlled
- Low Voltage/High Current Protection
- Endless Teflon Belt System
- Digital Heat Controls
Options:
- Parts Stacker
- Folding Lateral Loading Shelves
- Unwind & Rewind Systems
- 380 Volt Electrical System
|
|
|
SPECIFICATIONS
|
Model
|
Belt Width
|
Machine Width
|
Machine Length
|
Machine Height
|
Max. Temperature
|
Pressure
|
Belt Speed
|
Electrical |
Weight |
|
5363SC
|
63"
(160 cm)
|
83"
(210 cm)
|
167"
(425 cm)
|
51"
(130 cm)
|
390F
(200 C)
|
114 PSI
(8 kg/cm2)
|
14 m/min.
|
220/3/60
91 Amps
|
3100 lbs
|
|
