Carousel
Heat Transfer Printer

AIT CA1000
Ideal for t-shirts and small cut parts

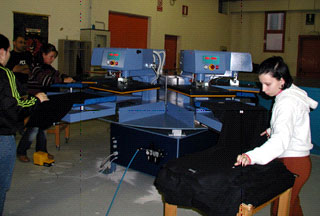

Astex 6 Station Carousel
Shown with 4 x 6 platen for special applications

The CA1000 Heat Transfer Press features 4, 6 or 8 independent stations with separate control of time, temperature and pressure. Each press contains a bottom loading platform which indexes in and out of the heat zone for ease of loading and unloading.

The system is fitted with 16x20 platens making it ideal for small cut parts and t-shirts. (Other platen sizes are available)

The exclusive 'Mica Heat Matte' assures quick recovery and consistent operating temperatures across the entire surface of the heated platen.

Video Demonstration of 6 station Carousel with t-shirt sized platens.

Heat Press equipped with t-shirt sized platens

The Mica Heat Matte is superior to tubular cal rod heating elements found in low-end heat presses. The matte has 100% contract with the platen to eliminate hot and cold spots and maintain operating temperature within 1 to 2 degrees throughout continuous operation of the press.

Here's a video of the Carousel Heat Press in action:

Unique air diaphragm pressure system generates an applied force of 22psi across the entire 16" x 20" platen.

Close up of 6 station Heat Press

This high pressure system provides precise registration of small text and deep penetration of ink into rigid substrates.

8,000 t-shirts a day.
Reported Production with 3 operators

HEAT PRESS INFO

Features:

16" x 20" standard heated platen. Other sizes available.
Unique air diaphragm pressure system generates an applied force of 22psi across the entire 16" x 20" platen.
All functions are controlled by PLC
Temperature range is 0º - 400ºF
Bottom loading platform indexes in/out of the heat zone for ease of on loading and off loading.
Each station complete with electronic safety device.

Digital time and temperature controls with precise settings to 0.1 degrees/seconds.
'Mica Heat Matte' assures quick recovery and consistent operating temperatures across the entire surface of the heated platen.
4,6,8 independent stations with separate control of time, temperature, and pressure.
Each station complete with electronic safety device
220V / 3 Phase / 41 Amps

Videos

CA1000 - Heat Transfer of T-shirts
CA1000 - Heat Transfer of Labels on sportswear

SPECIFICATIONS

Model	Number of Stations	Platen Size	Max Applied Force	Electrical	Weight
CA1000	4, 6 or 8	16"x20" 40cm x50cm	90 PSI Input / 22 PSI	220/3/60 45amps	2200 lbs (998 kgs)
