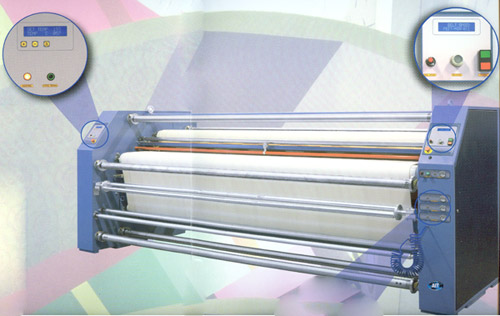

AIT LFO/GFO 60/72/104/126
Rotary Heat Transfer Dye Sublimation/Fixation Machine
|
|
The AIT grand format rotary heat transfer press is the culmination of over 25 years of manufacturing heat presses for the sublimation printing industries. High productivity, quality engineering design and consciientious after-the sale service all all good reasons for investing in this press for all your dye-sub printing or textile dye-fixation needs.
A self contained, oil heated drum system, assures uniform heat across the width of the cylinder and the lowest possible power consumption.
High productivity with low power consumption - a speed of 3.75 fpm with the lowest power consumption per printed foot of any comparable machine. Multiple safety systems, high quality electronic and pneumatic componests and ergonomic, light weight air shafts minimize down time and maximizes investment return.
|
HEAT PRESS INFO
Features:
- Oil heated drum. Self contained with digital heat control
- Digital variable speed control
- Unique belt steering system maintains constant belt positionMultiple printingwidths available
- 3 unwinds with pneumatic clutches
- 3 rewinds with pneumatic clutches and independent motor speed controllers
- Six lightweight air shafts
- Self locking safety chucks for all unwind/rewind bars
|
- Large 13" (33 cm) diameter heated drum for faster speeds
- 3.75 fpm printing speed at 40 second dweel time
- Twin "S" wrap bars for fabric tensioning
- Hand safety protection at entrance
- E Stops at all corners
- Lanyard controlled reversing system for safety & ease of feeding
- Dual Safety Reversing Systems
- Low maintenance, brushless drive motor - 3 HP direct drive
- Automatic "cool - down" mode
|
|

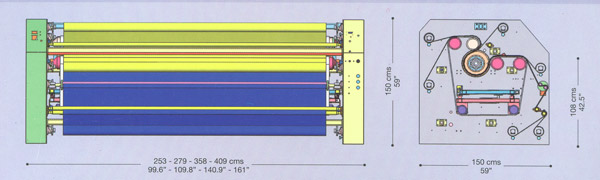

SPECIFICATIONS
| Model |
Dimensions |
Power Requirement @ 220/3 PH |
Average Consumption |
Belt Size |
Working Width |
Net Weight |
| LFO 60 |
59" x 99" x 59"
150 x 253 x 150 cm
|
30 amps |
15 amps |
168 cm /66" |
160 cm / 63" |
540 lbs / 1190 kg |
LFO 72 |
59" x 110" x 59"
150 x 279 x 150 cm |
35 amps |
18 amps |
198 cm /78" |
190 cm / 75" |
585 lbs /1290 kg |
GFO 104 |
139" x 63" x 56"
353 x 160 x 142 cm |
55 amps |
28 amps |
268 cm / 105" |
264 cm /104 " |
4200 lbs / 1890 kg |
GFO 126 |
161" x 63" x 56"
403 x 160 x 142 cm |
60 amps |
30 amps |
325 cm / 128" |
320 cm / 126" |
5500 lbs / 2500 kg |
|
