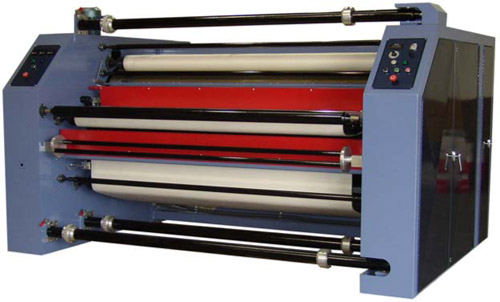

The Astex 7400 Hi Speed printer
is equipped with efficient unroll and re-roll handling systems
for both fabric and paper. Separate blotting tissue handling
controls dye contamination.
In order to enable consistent high-quality printing, the Astex
7400 is equipped with three PD Digital Heat Controllers for exact
temperature regulation. Drum diameter is 24" (60 cm).
The zone controllers have the following features:
- Digital temperature display for actual and set temperatures
- Set point temperature indicator
- Alarming signal if temperature varies above or below set
point
- Fail-safe thermocouple monitor
HEAT PRESS INFO
|
Features:
- 24" (61 cm) diameter fixed heat drum
- 3 Zone Solid State Temperature Control
- Adjustable tension controls for Unwind
and Rewind Devices
- Variable Speed Control
- Automatic Cool Down Time
- Easy Access On/Off Belt
- Long belt life with Safety Shut-off Devices
- Digital Heat Controllers
|
Options:
- Status Indicator
- Anti-Static Device
- Microsprocessor Control
- Adjustable Air Operated Clutches on Unwinds/Rewinds
|
SPECIFICATIONS
| Model |
Belt Width |
Machine Width |
Machine Length |
Machine
Height |
Print width |
Amps Draw @
220V/3ph |
Electrical |
Belt Speed @ 20 sec. Dwell |
Net Weight |
| 7460 |
65 in.
(162 cm) |
94 in.
(235 cm) |
127 in.
(318 cm) |
54.5 in.
(138 cm) |
60 in. (150 cm) |
125 |
220/3/60 |
14 FPM 4.5 m/m |
6,000 lbs
2,725 kg |
| 7472 |
77 in.
(190 cm) |
106 in. (265 cm) |
127 in. (318 cm) |
54.5 in. (138 cm) |
72" (180 cm) |
135 |
220/3/60 |
14 FPM 4.5 m/m |
6,500 lbs
2,950 lbs |
Printing Width : 60" & 72" (150 & 180
cm)
|
