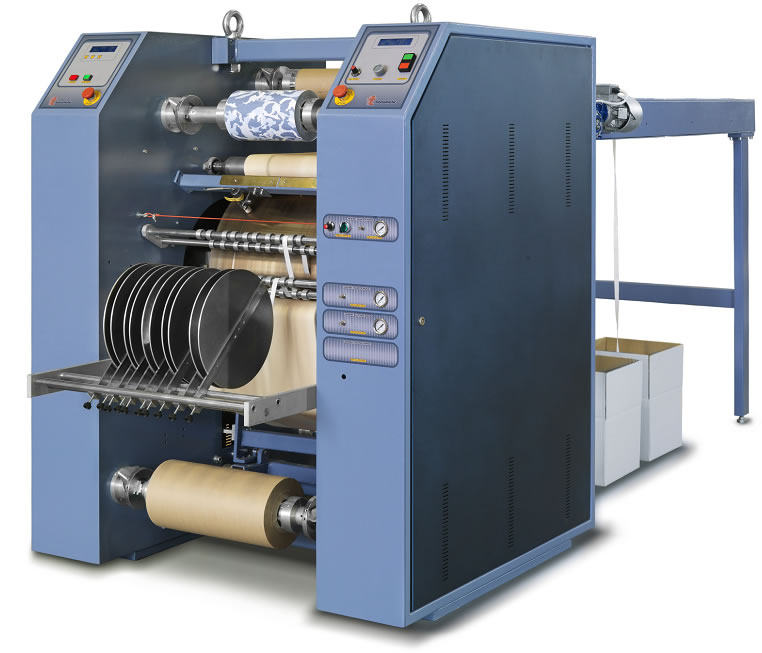

AIT/Astex #7616IJO
Continuous Narrow Web Rotary Heat Press
Oil Heated Drum for high quality dye sublimation transfer technology
|
AIT/Astex #7616IJO |
- Belt Width 16” (41cm)
- Production Speed 14fpm (4.3m/m) @ a 20 second dwell
- 7 fpm (2m/m) @ a 40 second dwell (typical digital speed)
- Max Belt Speed 10ypm (9m/m)
- 24” (61cm) diameter Oil Heated Drum
- 13.75 (34.0cm) diameter drum also available
- Check out the model #7240IJO which
can also be used for narrow web printing
|
|
DESIGNED for the continuous printing of:
- Ribbons
- Elastic Bands
- Lanyards
- Small Format (Narrow Width) roll-to- roll printing & Heat setting
|

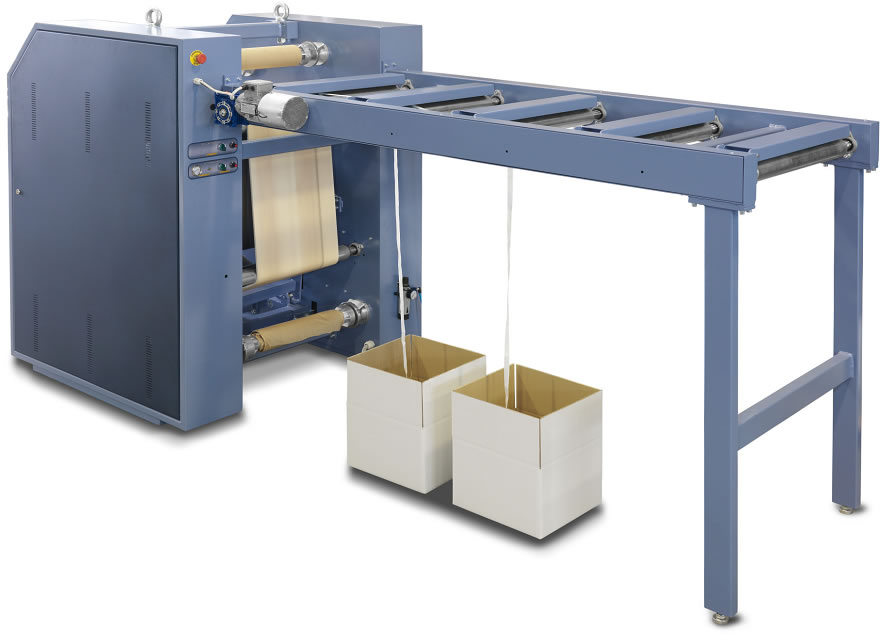

AIT/Astex #7616 IJO Shown With Optional 5 Station Power Take-Off |
Video Demonstration |
AIT/Astex Model #7616IJO Transfer Press –Oil Heated Drum |
|
SPECIFICATIONS
| Model |
Print Width |
Belt Width |
Machine Width |
Machine Length |
Machine
Height |
Amps Draw @
220/3/60 |
Net Weight |
| 7616 |
13" |
16" |
44" |
49" |
61" |
31 AMPS
(7.2 kw) |
1900 lbs
862 kg |
Printing Width: 13"
|
Print
