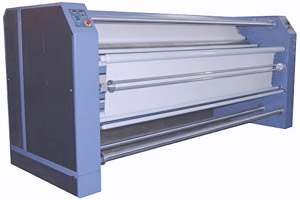

AIT 8900
Grand Format Rotary Heat Press |
Up to 72" Dye-Sublimation
Printing
Roll to Roll Fabric Printing ideal
for Home Furnishing and wide width banners.
|
|
The AIT 6572 CPO is specifically designed for digital dye sub printing of apparel and other industries that
require cut part, engineered prints. A new self contained, oil heated drum system assures uniform heat across the width of the cylinder and the lowest possible power consumption. AIT oil heated drum
systems use 50% less electric power than all electric machines.
The AIT rotary heat presses with the new oil heated drum system will increase production, reduce seconds, and save on energy costs. High productivity, quality engineering design and conscientious after-the sale service are all good reasons for investing with AIT for all needs in dye sub printing or textile dye fixation.
|
HEAT PRESS INFO
| Features:
- Belt feeding system with independent drive for feeding cut parts
- Large 13” (33 cm dia.) oil heated drum
- 77” (196 cm ) wide Nomex felt for 72” (180cm) wide printing\
- Electro pneumatic belt steering system
- Safety bar with reverse control\Cool down timer
|
- Exit cooling conveyor
- Automatic paper separator bar eliminates ghosting caused by paper shifting or fabric shrinkage
- Exit cooling conveyor cools and take printed parts to the back side for stacking
- Tissue paper unwind/rewind
- All motors DC brushless
Options
|
SPECIFICATIONS
| Model |
Print Size |
Dimensions
H x L x W (ft) |
Drum |
Amps |
Air |
Electrical |
Net Weight |
| 8960 |
60"
(160 cm) |
103x55x56"
262X138X142
cm
|
13" Dia
33cm (Oil heated) |
40
|
Yes |
220V-3PH-
60HZ |
3250lbs
1474kg |
| 8972 |
72"
(180 cm) |
115x55x56"
292x138x142cm |
45 |
3900lbs
1769kg |
|
Print
