Konsan Fabric Inspection Machine
(Lap Operating)
|
|
|
The KONSAN Lap-Operating Fabric Inspection and Measurement
Machines have been designed and produced in order to prevent problems
and cost increases that may arise in sewing departments of apparel
industry due to production faults in the fabric.
This fabric measuring and inspection machine is suited for tubular
fabrics and lapping. It can handle rolls up to 300 lbs with a maximum
roll diameter of 16". It has multi-mode operation including roll-to-roll,
roll-to-lap, lap-to-roll, & lap-to-lap. When required the KONSAN Lap-Operating Type Fabric Inspection
and Measurement Machine is produced with edge following aligning
photcells for obtaining the maximum use of fabric.
Illuminated bottom screen and illumination from above provides
an easy control of fabric.
|
|
Lap-Operating Device Shown Above
|
Inspection Machine Info
Features:
- Counter for measuring the length of fabric that is
inspected.
- AC speed control
- Specialized mechanism for fabric tension adjustment
- Handles rolls up to 300 lbs
|
- Multi-mode Operations
- Maximum roll diameter of 16"
|
|
TECHNICAL INFORMATION
| |
KK 190 MD
KK 190 MFD |
KK 210 MD
KK 210 MFD |
| Max. Fabric Width |
75" |
83" |
| Max. Fabric Roll Diameter |
16" |
16" |
| Max. Fabric Weight |
150 kg |
150 kg |
| Max. Speed |
60 m/min. |
60 m/min. |
| Machine Width |
77" |
77" |
| Machine Length |
96"
108" |
104"
116" |
| Machine Height |
76" |
76" |
| Machine Weight |
560 kg
660 kg |
615 kg
715 kg |
ELECTRICAL DATA
|
KK xxx MD |
220 V.A.C. 1 PHASE
1,1 Kw. 50/60 Hz |
Edge Alignment System |
|
KK xxx MFD |
For USA:
220 VAC, 3 PHASE, 60 Hz
For Others:
380 VAC, 3 PHASE, 50 Hz
Power: 2 Kw |
Edge Alignment System |
|
OPERATING MODES
Operating Mode 1 : Roll to Roll (for the side-inside rolls)
| Setting Point |
Choose |
| Loading Fabric |
Shown Below (Figure 1.0) |
| Operating Mode Selector Switch |
Normal Mode |
| Lapping Mode Arm |
Normal Mode |
| Feeding Rollers Direction Selector Switch |
Side-inside mode |
| Tension Adjustment Knob |
Between 2-5 |
| Edge Alignment Photocells |
On the front group |

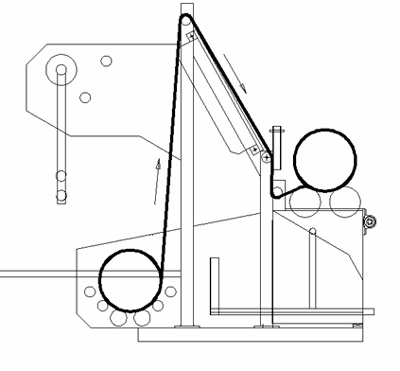

Figure 1.0: Roll to Roll (for the side-inside rolls)
Operating Mode 2 : Roll to Roll (for the side-outside rolls)
| Setting Point |
Choose |
| Loading Fabric |
Shown Below (Figure 1.1) |
| Operating Mode Selector Switch |
Normal Mode |
| Lapping Mode Arm |
Normal Mode |
| Feeding Rollers Direction Selector Switch |
Side-outside mode |
| Tension Adjustment Knob |
Between 2-5 |
| Edge Alignment Photocells |
On the front group |
Figure 1.1: Roll to Roll (for the side-outside rolls)
Operating Mode 3: Lap to Roll
| Setting Point |
Choose |
| Loading Fabric |
Shown Below (Figure 1.2) |
| Operating Mode Selector Switch |
Normal Mode |
| Lapping Mode Arm |
Normal Mode |
| Feeding Rollers Direction Selector Switch |
********** |
| Tension Adjustment Knob |
Between 2-5 |
| Edge Alignment Photocells |
On the front group |

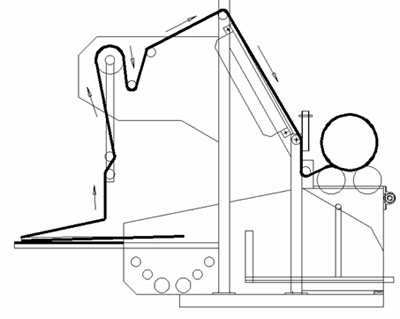

Figure 1.2: Lap to Roll
Operating Mode 4: Roll to Lap
| Setting Point |
Choose |
| Loading Fabric |
Shown Below (Figure 1.3) |
| Operating Mode Selector Switch |
Lap Mode |
| Lapping Mode Arm |
Lap Mode |
| Feeding Rollers Direction Selector Switch |
********** |
| Tension Adjustment Knob |
Between 6-9 |
| Edge Alignment Photocells |
On the Main Body |

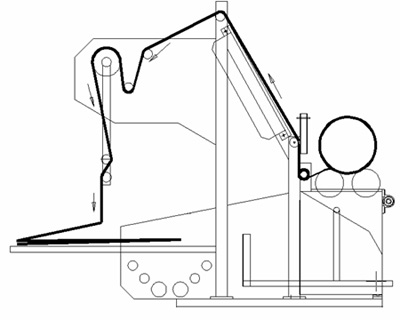

Figure 1.3: Roll to Lap
Operating Mode 5: Lap to Lap
| Setting Point |
Choose |
| Loading Fabric |
Shown Below (Figure 1.4) |
| Operating Mode Selector Switch |
Lap Mode |
| Lapping Mode Arm |
Lap Mode |
| Feeding Rollers Direction Selector Switch |
********** |
| Tension Adjustment Knob |
Between 6-9 |
| Edge Alignment Photocells |
On the Main Body |

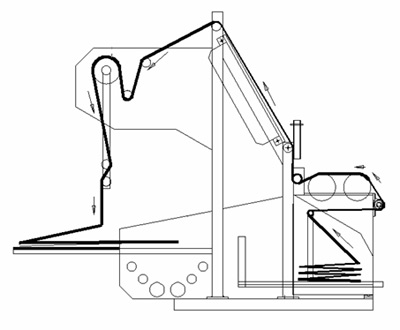

Figure 1.4: Lap to Lap
|
