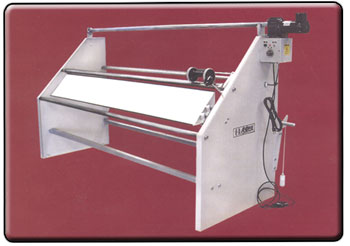

Jr. Inspecting and Measuring Machine
Model 328
|
- Models Available for 60", 66", & 72"
width goods.
- One of the lowest cost models on the market
today. Contact us for prices.
|
|
ECONOMY MODEL MACHINE FOR QUALITY CONTROL AND ACCURATE
YARDAGE COUNT
This machine provides fast, easy quality control for
counting fabric yardage. It has a low, fast drop-in loading
bar and edge guide in the back. All speed controls are
in one location for simple operation. It comes fully equipped
with variable speed control pedal allowing a slower rate
for inspecting or faster rate for rewind.
Excellent for
inventory, a measuring counter with reset button
measures fabric accurately in yards and tenths of a
yard, and optional
metric measurement at no additional charge.
Inspection Machine Info
Features:
- Simple measuring counter with reset
button.
- Manual edge guiding for perfect fabric
roll alignment.
- Specialized mechanism for fabric tension
adjustment
- Tension adjuster that applies
the desired amount of tension
for a tight or relaxed rewind
- Variable speed foot pedal for slow
or quick fabric inspection
|
Options
- Light box for spotting fabric flaws
before they reach the cutting
table.
Spec Diagram
|
TECHNICAL INFORMATION
| |
Model 328 |
|
Weight |
210 lbs |
|
Height |
4'4" |
|
Length |
7'9" |
|
Width |
3'2" |
|
Amp |
1 |
|
Volt |
115 |
|
Phase |
1 |
|
