Various width ( from 190 cm to 330 cm), up to 80 Kg roll weight
Quarter-Turn ability to make center-fold rolls
Joystick controlled cutting line guide system
Motor driven circular cutting knife
Adjustable roll tension
Adjustable speed
End of roll stop sensor
Illuminated inspection panel
Designed to cut and open tubular knit fabric including Lycra

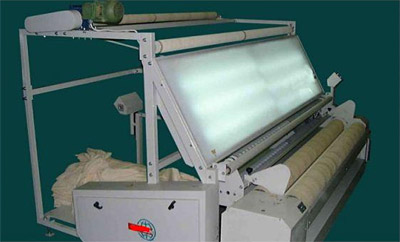

The AIT/Konsan Cut & Roll machine designed to cut and open tubular knit fabric, inspect/measure and then roll it up into a perfect roll. To accomplish this, the operator uses a “joy stick” control to cut and follow the line precisely. Lycra is becoming a very common material in tubular knitted goods.
When the material is knitted, it is usually wrapped into a roll and stored in this condition. The fabric roll ends up with creases on both sides. These creases make following operations much harder and increase fabric waste. The Cut & Roll machine precisely cuts the tube lengthwise and opens it. While rolling up, the two edges pass over a special de-curling station just before the fabric roll station. Eliminating edge curls maximizes fabric usage.
