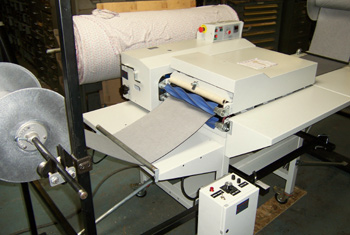

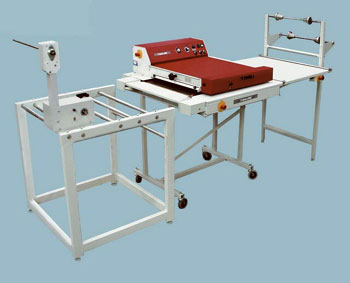

The Astex 2024SC
Table Top Laminating Machine
|
|
|
The Astex 2024SC Series is standard in 24"
belt width. A large lay-up table top, bottom heat control
and adjustable Silicone Pressure Rollers make this system
especially adaptable for Roll-to-Roll applications such
as Film to Fabric Lamination, etc...
Floating top heating modules assure firm contact heat transfer
on all thickness of materials.
|
Laminating Machine Info
Features:
- Top
and bottom heat
- Ez-Track
Belt Guid System
- All
electric design (No Compressed Air Required)
- Variable
belt Speed
- Variable
temperature Control
- Loading
Table
|
Optional Equipment:
Spec Diagram:
|
SPECIFICATIONS
| Model |
Machine Length (With Table Only) |
Machine Width
(2024SC) |
Machine Height
(2024SC with stand) |
Belt Speed ft./min |
Belt Width |
Power Requirements |
Net Weight |
| 2024SC |
77.3 in.
(196 cm) |
45.8 in.
(116 cm) |
52.8 in.
(134 cm) |
30 ft/m
(9.1 m/m) |
24 in.
(61 cm) |
220/1/20 amp draw |
600 lbs
(272 kgs) |
|
