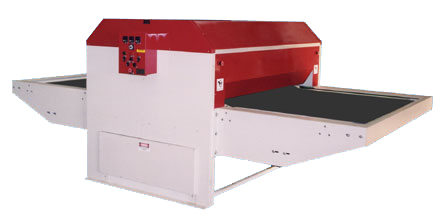

The AIT/Astex 295
Turbo-Goliath Film/Fabric Laminating Press |
Handles up to 70" fabric. Ideal for
Emblem Industry.
|
For over 20 years, the Turbo-Goliath has served the lamination
needs of the emblem industry. Its large electrically heated
platen allows for up to 70" wide fabric. Designed specifically
for post lamination of multiple layers, the Turbo-Goliath
Laminating machine will also pre-laminate at a production
rate of approximately 9 FPM.
|
The Turbo-Goliath is designed to laminate
thermoplastic film to embroidery without crushing it or heat
damage. After lamination has completed, the vacuum system
pulls the embroidery stitching to the face of the fabric which
helps increase its 3-D effect.
The machine is well-suited for Schiffli and multi-head embroidery
and the threads do not have to be trimmed prior to laminating.
Alignment of the materials is made easy with two holding brackets.
Included are many standard features including an energy miser
temperature control to conserve electricity, and an automatic
take-up roller to rewind the cooled parts into a roll for
easy unloading.
|
Laminating Machine Info
Features:
- Indexing Conveyor
- Unwinds with Automatic Rewind [Not Shown]
- Pneumatic Pressure System
- Long Life Teflon Coated Fiberglass Belt
- Microprocessor
|
Optional Equipment:
- Steam Mist System with Boiler
- Patented Vacuum System with Turbine
Spec Diagram:
|
SPECIFICATIONS
| Model |
Platen Size |
Length |
Width |
Height |
Amps |
AIR |
Net Weight |
| 295-B |
36" x 60" |
11'-3"
(822 cm) |
84"
(213 cm) |
63"
(160 cm) |
102 Amps @
220/3/60
|
125 PSI
|
4,500 lbs.
|
295-D
|
36" x 72"
|
11'-3"
(822 cm) |
96"
(244 cm)
|
63"
160 cm
|
102 Amps @
220/3/60 |
125 PSI |
5,000 lbs. |
|
