AIT/Konsan L2 Laminator
Effectively laminate 2 or 3 plies of substrates
|
|
|
FEATURES
Features:
- From 1600 mm (63") to 2400 mm (95") operational widths
- Pneumatical Pressure, adjustable
- Six Zone Heating that can be adjusted separately to provide high quality bonding
- Even pressure distribution to provide homogenous bonding
- State-of-art PID heat controller system to provide precise tempeerate adjustment (max. dev. is +/-1%)
- Teflon belts top & bottom
|
- Seamless top belt to keep joint mark free on laminated surface
- AC drive motor, coupeld gearbox and trasmission system for continuous work
- Belt reversing control to prevent mistakes
- Automatic cool-down system
- Low voltage/OVer Current Protection
- Low pressure and belt position warning lights over the panel
- Efficient heat insulation and electrostatic powder coated paint finish
Optional
- 3 styles of cooling-fan, chilled air or water cooled and gapping to 10 cm (4")
|

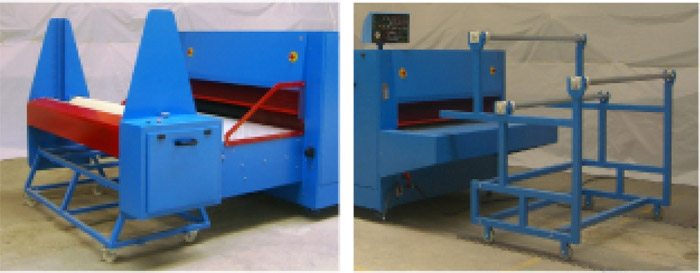

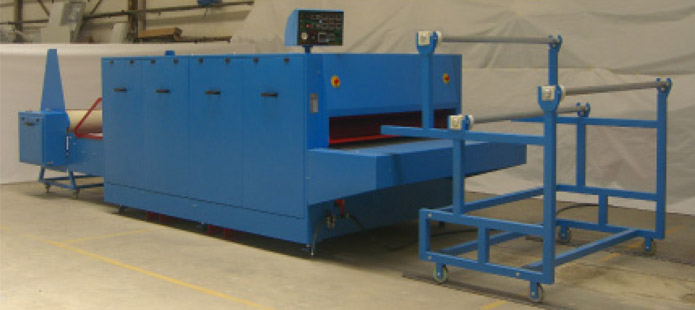

Laminating Machine with Fabric Rewind and 3 Station Unwind
SPECIFICATIONS
|
Model |
Belt Width |
Machine
Width |
Machine
Length |
Machine
Height |
Bonding Time |
Net Weight |
| L225-C06-120 |
121 cm (48"') |
121 cm (48") |
450 cm (177") |
160 cm(63") |
5 -25 sec |
1500 Kg |
| L225-160 |
160 cm (63"') |
182 cm (72") |
450 cm (177") |
160 cm(63") |
5 -25 sec |
1500 Kg |
| L225-200 |
160 cm (63"') |
229 cm (90") |
450 cm (177") |
160 cm (63") |
5 -25 sec |
1800 Kg |
| L225-C06-180 |
154 cm (72") |
229 cm (90") |
450 cm (177") |
160 cm (63") |
5 -25 sec |
1800 Kg |
|
| |
|
