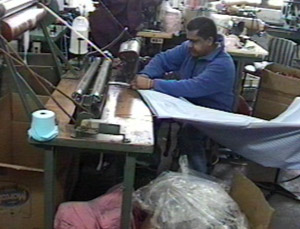

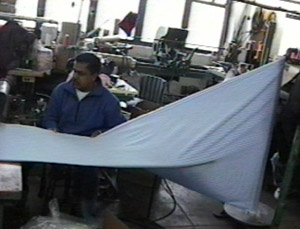

The box of sewn tubular material produced by the Tube Stitching
Unit is placed into the swivel frame of the bias cutting and winding
unit. The desired width of the finished bias roll is determined
and the proper cutting angle is set on the unit.

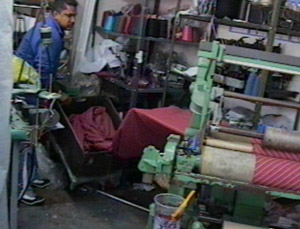

The end of the tubular cloth is then drawn over the adjustable
mandrel that automatically tensions the cloth. As the material is
withdrawn from the box swivel onto the mandrel it is spirally cut

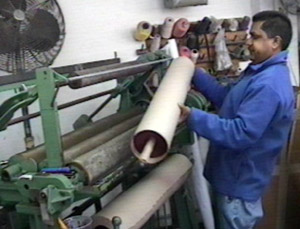

on the bias and automatically rolled into a continuous bias roll.
FEATURES:
- Manual box swivel, wood accumulating box
- Fabricated steel and cast parts
- Steel point type core bar - customer to specify core size *
- Steel overall roller
- Steel drive roller
- Steel idler roller
- One-half horsepower blower motor
- Expanding mandrel 96-152cm with drop extension
- Screw adjustment to change bias angle
- Knife trim assembly
- Adjustable tension clutch
- Electrical kit in 220 volt 3 phase or 110 volt
* Core size should match slitting machine
|
