Rebuilt and Refurbished Machinery

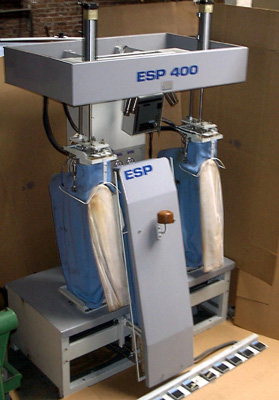

(Actual Finisher Pictured Below)
Pressing Stations
are housed on a single base modul with sleeve pressing heads mounted
on a carriage system.
|
Vaporpress/Veit ESP 400
Automated Sleeve-Shoulder Finisher with Armhole Creasing
for Ladies Coats and Jackets
The Vaporpress/Veit ESP400 Automated Sleeve-Shoulder Finisher
was designed for high quality finishing and blocking of the entire
sleeve (including the sleeve head, seams, and cuffs), shoulder
finishing and armhole creasing of women's coats and jackets.
A consistently perfect press can be achieved while utlizing
unskilled operators. One operatore can press up to 600 garments
per eight hour day.
The Sleeve-Shoulder Finisher is microprocessor controlled with
up to eight programs stored in memory. A very economical unit
to operate, minimal floor space and utlities are required
Sleeve-Shoulder Finisher Specifications
| Steam Connections:
|
| Steam Inlet: |
1/2" |
| Condensate Rtn: |
1/2" |
| Pressure: |
80 PSI to 100 PSI
5.5 Bar to 7.0 Bar
|
| Traps & Check Valves incl. |
| Compressed Air:
|
| Air Inlet:
|
1/2" |
| Pressure: |
90 PSI to 100 PSI
5.5 Bar to 7.0 Bar
|
| Consumption: |
6 CFM |
| Electrical: |
| Standard: |
220V. 1 Phase
50/60 Cycle
|
| Max Loading: |
13 amp |
| Vacuum: |
| Inlet: |
2 1/2" |
|
|

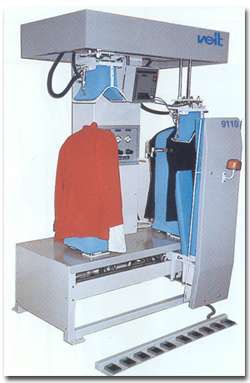

Vaporpress/Viet Automated Sleeve-Shoulder Finisher
|
Additional Features and Advantages
- Alignment Spotlights
- Variable Pressure Pressing Heads
- Head Safety Guards
- Flexing Front and Rear Shoulder Pressing Head (Prevent Stretching
- Microprocessor 12 Channels, 8 Programs
- Steam Heated Shapes
- Front and Rear Draping
- Armhole Crease Plate
- Sleeve Forms Complete with:
- Rear Expansion
- Steam Spray
- Air Blowing
- Vacuum
- Pedal Deck Complete with:
- Manual/Auto Pedals
|
|
