Konsan
Cutt-off machine
|
|

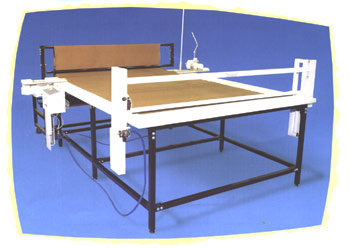

The Konsan Cut-Off Machine,
that is designed and produced by Konsan, is an ideal machine
for cutting manually spread marker ends at a rigth angle to
the long edge without waste
It will also cut down the time spent for this operation
to a minimum.
The machine can be produced at any width that is required.
IT can also be fitted to your existing tables.
|
 |
FEATURES
|
The Konsan Cutt-Off machine
can be used with any type of fabric having its pneumatic
lifter and electrically controlled cutting device. It
enables the producer to save time and money
The machine can be operated
in a way to prevent the fabric from being stretched
by combining it with piped fabric unrolloing device.
|
|
TECHNICAL INFORMATION
| Marker Height
|
75"
19cm
|
| Pneumatic Data |
4.6 kg/cm(2)
20 lt/min
|
| Weight |
85 kg
|
| Cutting Width |
Table Width + (21.65")
|
| Machine Width
|
As Required
|
| Electrical Data
|
220 V.A.C
700w
1 Phase
50/60 HZ
|
PIPED ROLLING DEVICE
| Max. Roll
Diameter |
20"
50 cm
|
| Width |
As Required
|
| Weight |
50 kg. (182cm) (72")
|
|
