ROLL TO ROLL FUSING/LAMINATING

Typical Setup with Model #A125 and #A210

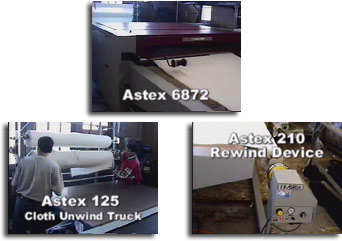

The picture below represents the typical setup for high production roll to roll fusing or laminating using an Astex high production fusing/laminating machine, a #124 Cloth Unwind Truck and a #210 Rewind Device with Air Clutch.

Click on any of the text images below for further product information

Shot below shows complete roll-to-roll fusing setup with winder in the background and fusing machine in the front. Demonstration Video Available.
Figure 1.0 Shows two operators unloading a fabric roll using the Astex 125 Cloth Unwind Truck	Figure 1.1 Shows the Astex 210 Rewind Device which is located at the front of the machine.
