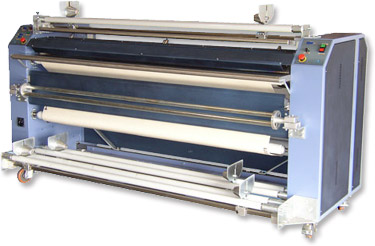

Astex 7300IJ
Rotary Heat Transfer Printer
|
|
Specially engineered to meet the demands for Ink
Jet Dye-Sublimation Transfer Technology.
See video
demonstration
|
The Astex Model 7300IJ series
is specifically desgned for the ever increasing demand for
Ink Jet Dye-Sublimation Transfer Technology. Like its counterpart
the Astex 7900T Heat Press series,
the 7300 features includes optional rewind/unwind
systems for roll-to-roll
applications, and an optional feed tray for loading heat
transfer parts.
This heat press does not require a compressed air
unit. Its belt tracking system is electronically controlled,
and the print widths are available in 72" and 60".
With a printing width up to 72", the 73600IJ is ideal
for large format sublimation printing. Our total
solution dye sublimation package has more information.
|
|
HEAT PRESS INFO
|
Features:
- Digital Zoned Heat Control
- Digital Variable Speed Control
- Automatic Cool-Down Timer
- Specifically designed for Ink Jet Dye-Sublimation
Transfer Technology.
- Printing speed up to 3 fpm.
|
Optional Equipment
Videos:
|
SPECIFICATIONS
| Model |
Print Width |
Belt Width |
Machine Depth |
Machine Height |
Machine
Width |
Belt Speed |
Amps Draw @
220/3/60 |
Net Weight |
| 7360IJ |
60" |
63"
(160 cm) |
48"
(104 cm) |
56"
(142 cm) |
88"
(223 cm) |
3 ft/min |
21 |
2200 lbs
1000 kg |
| 7372IJ |
72" |
75"
(190 cm) |
48"
(122 cm) |
56"
(142 cm)
|
104"
(265 cm) |
3 ft/min |
26 |
2550 lbs
1150 kg |
|
